The Ocktron LG is a 3D printable large sized home lab rack, perfect for projects up to 9U height(15.75 inches). Engineered with our new Frame 2.0 with easy paint design, less screws, ergonomic handlebars, art-deco style and functional side panels to boost usability.

About

A 10 inch server rack frame that balances rigidity and printability, offering modular assembly, clean cable routing, and reliable support for networking devices, small servers, and test gear.

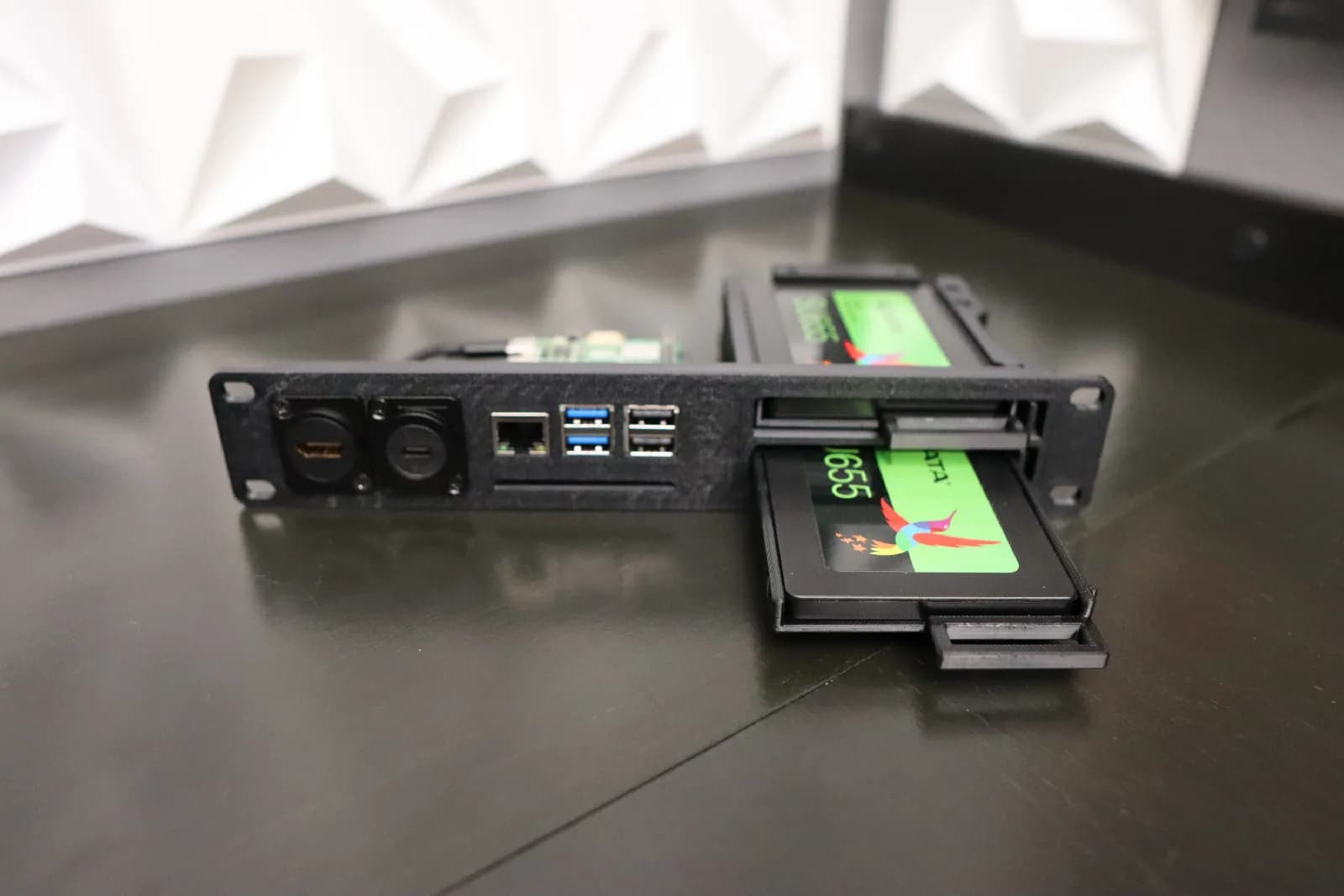

Ocktron supports mounting plates for Raspberry Pi and other microcomputers, mini‑ITX motherboards, SSDs and HDDs, SFX and Flex ATX power supplies, 7‑inch displays, and additional modules planned.

No soldering, threaded inserts, or costly rack screws required. It uses off the shelf, economical hardware and a single screw size for the assembly.

😊 Stay tunned, more plates and features are yet to come.. 🚀

Dimensions (working area)

• Width: 5U / 8.75in / 22.22cm
• Length: 6U / 10.5in / 26.67cm
• Height: 9U / 15.75in / 40.02cm

3D Print Profile

• PETG: for structural strength.
• Layer height: 0.2 mm
• Print speed: use standard for optimum results, or 40–60 mm / s(slower for fine details).
• Wall loops: 4 layers for optimal outer strength.
• Top layers: 5.
• Bottom layers: 3.
• Infill: 20 % for optimal quality / strength of the pieces.
• Material support: yes
• Brim: not required.

BOM

Pick one of the following screw types, you need 62 screws for full frame/panels/feet/handlebars assembly, and 25 spare screws for front plates attachment, one box of 100 screws will be enough.

• 1 box of #6 3/4 inches self tapping screws(American standard)

• 1 box of M4x16mm self tapping screws (Metric standard)

Assembly Instructions

• View our video assembly in the gallery
